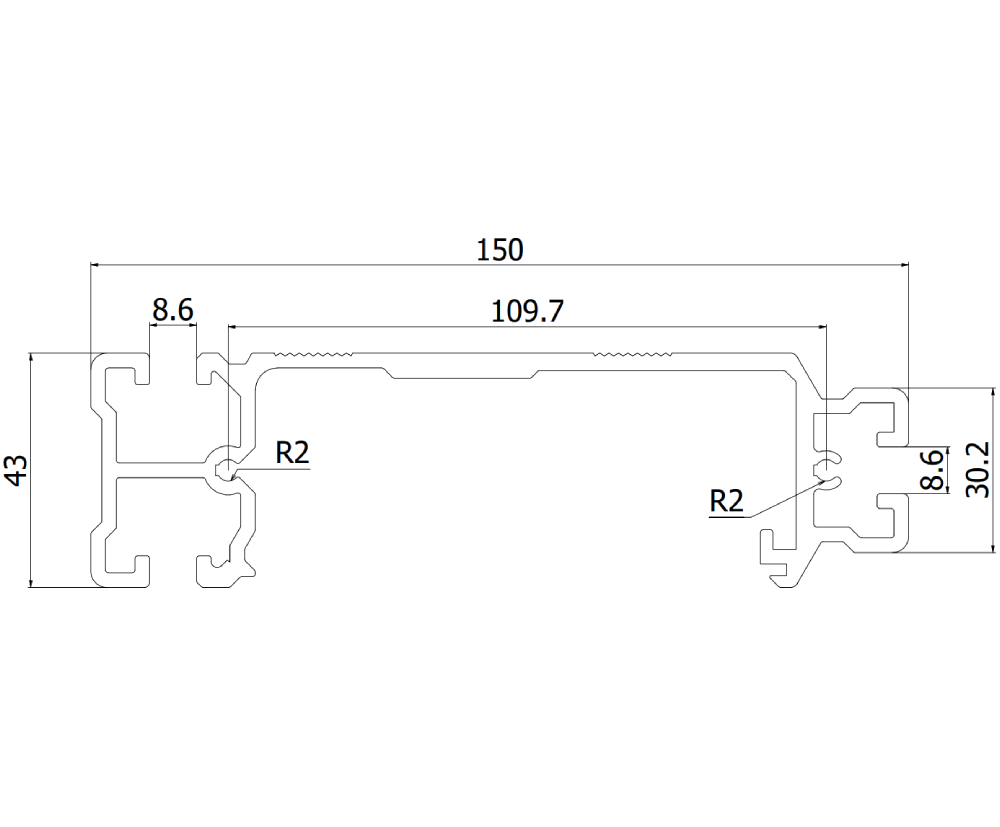

Conveyor profile series PTP-43150-8
Product Information
Profile specially design for conveyor installation which are normally use for transfer system, belt systems or cable carrier system.
| Material | Weight | Length | Section Modules | Mass of Inertia |
|---|---|---|---|---|
| 6063-T5 Aluminium | 2.96 kg/m | 5.6 meters | Zx 8.19 cm3 Zy 39.59 cm3 |
Ix 22.19 cm4 Iy 308.43 cm4 |
