PTP-3030L2SO-8
PTP-3030L2SO-8

30series PTP-3030L2SO-8

Product Information

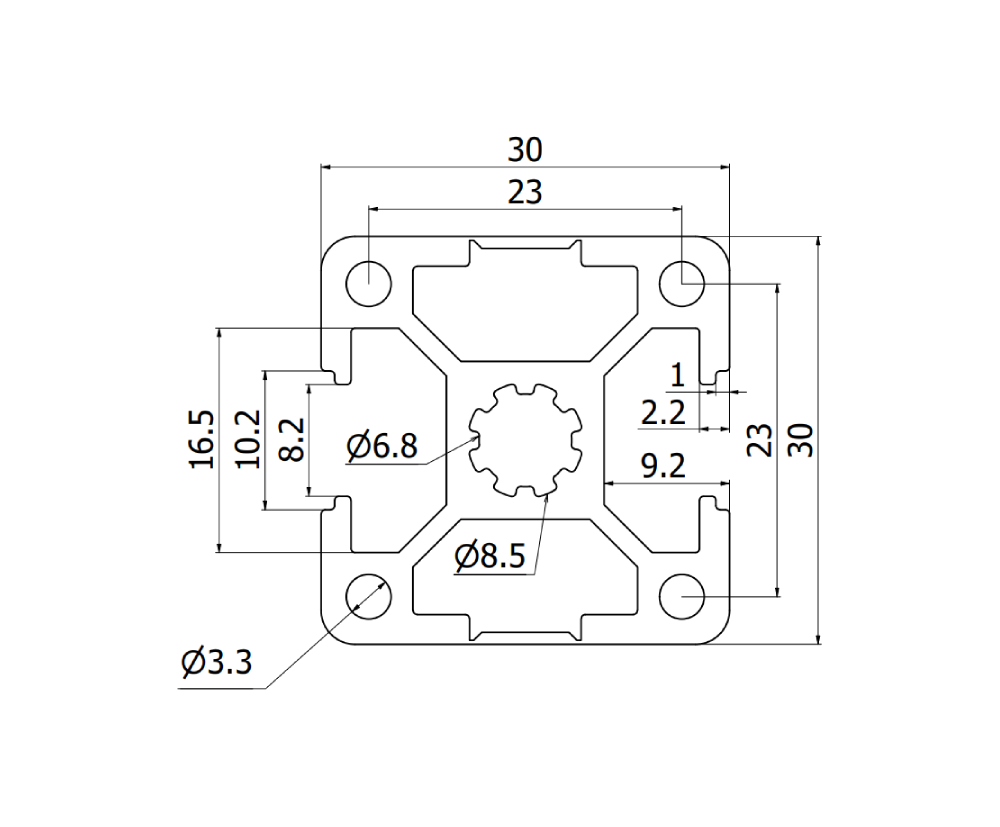

This profile belongs to “-8” group slot profile. Profile specially design with both opposite sides covered and 2 slots in between.

MaterialWeightLengthSection ModulesMass of Inertia
6063-T5 Aluminium 0.91 kg/m 5 meters Zx 2.23 cm3
Zy 2.00 cm3
Ix 3.35 cm4
Iy 3.00 cm4
